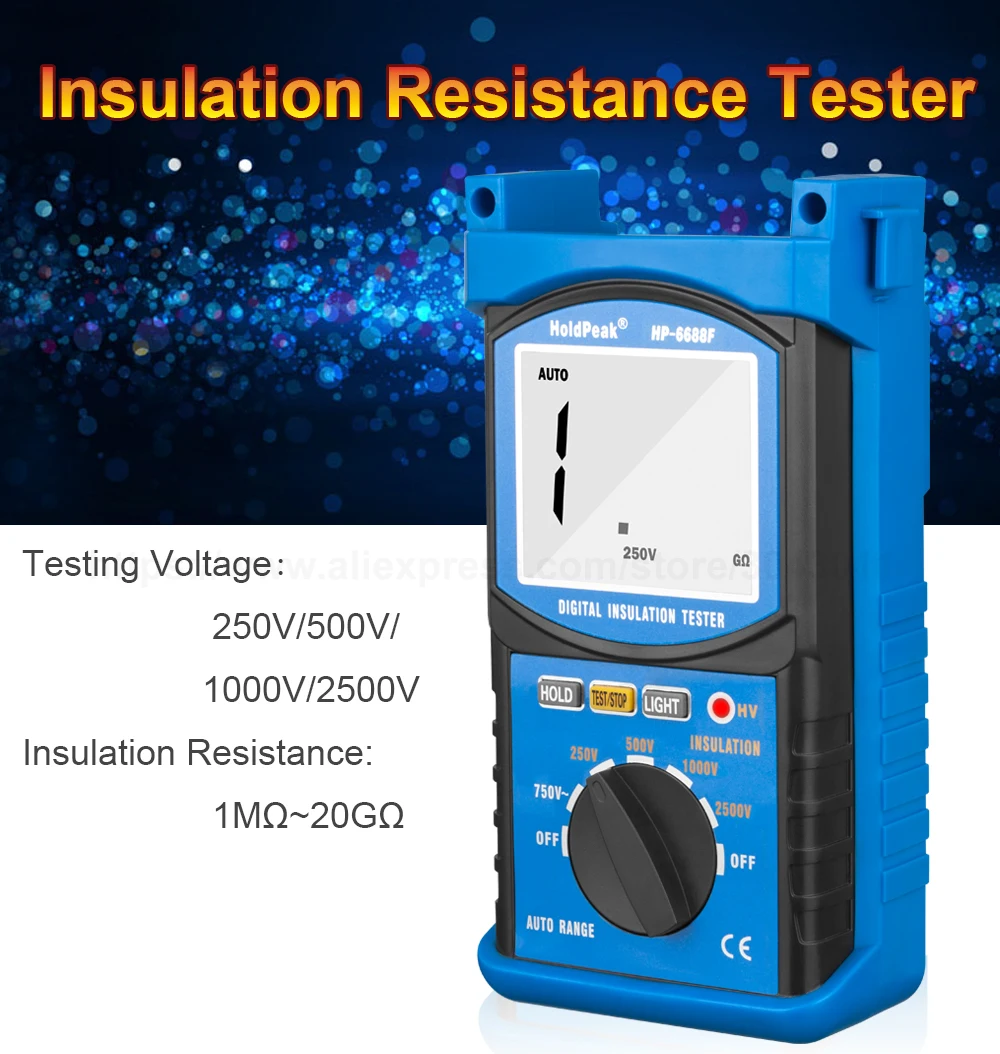

HoldPeak 6688F Digita Insulation Resistance Tester Meters 250V/500V/1000V/2500V Megger Megohmmeter Voltmeter

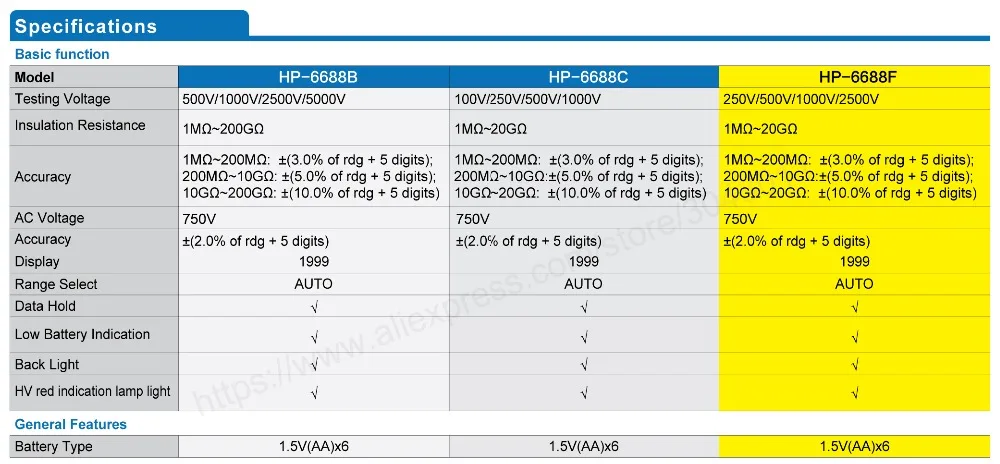

Measuring Range: 1M-20G
Operating Temperature: 0~40
Model Number: HP-6688F
DIY Supplies: Electrical
Testing Voltage: 250V/500V/1000V/2500V
Display Type: Digital Only
Brand Name: HoldPeak
Accuracy Class: a
The Digital Insulation Resistance Tester series have high performance, and safe configuration and improved electrocircuit. It is one new item which has more fully function, higher precision, and easier operation. It’s also one quakeproof, dustproof and dampproof tester and can fit work environment of outdoor.
The output testing voltage changed between 250V/500V/1000V/2500V for different item no. The resistance 20GΩ, the tester also can measure alternating voltage.

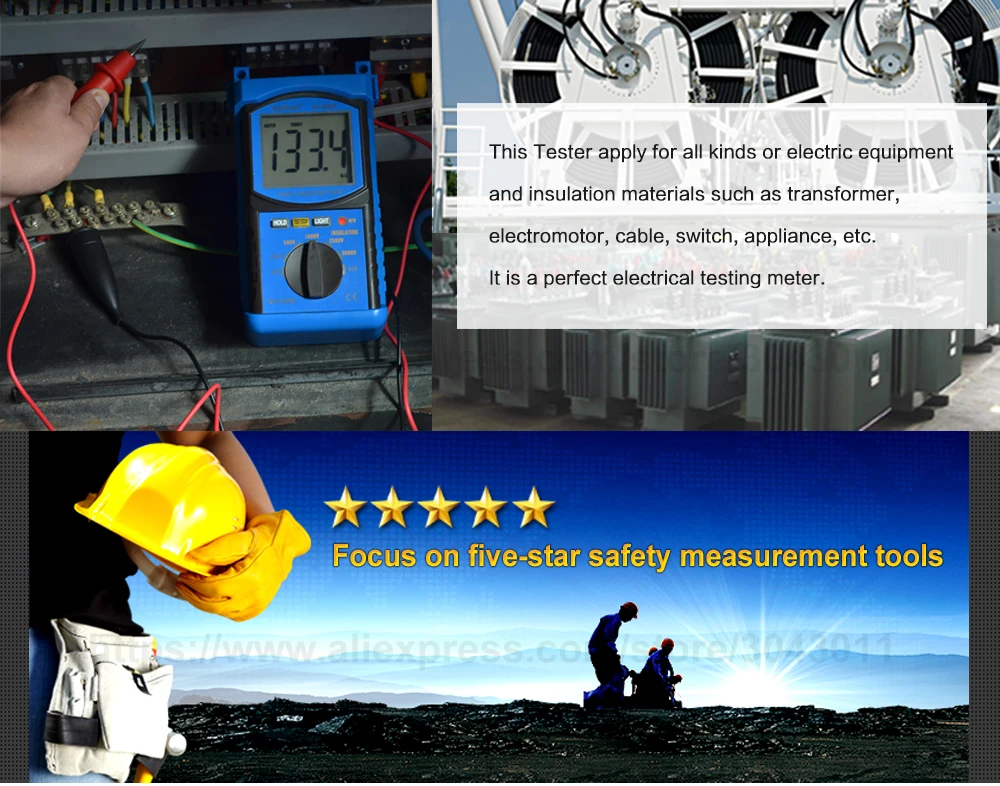

This Tester apply for all kinds or electric equipment and insulation materials such as transformer, electromotor, cable, switch, appliance, etc.
It is a perfect electrical testing meter.
2. Safety Notice
(1) Read this Operation Manual carefully before use it.

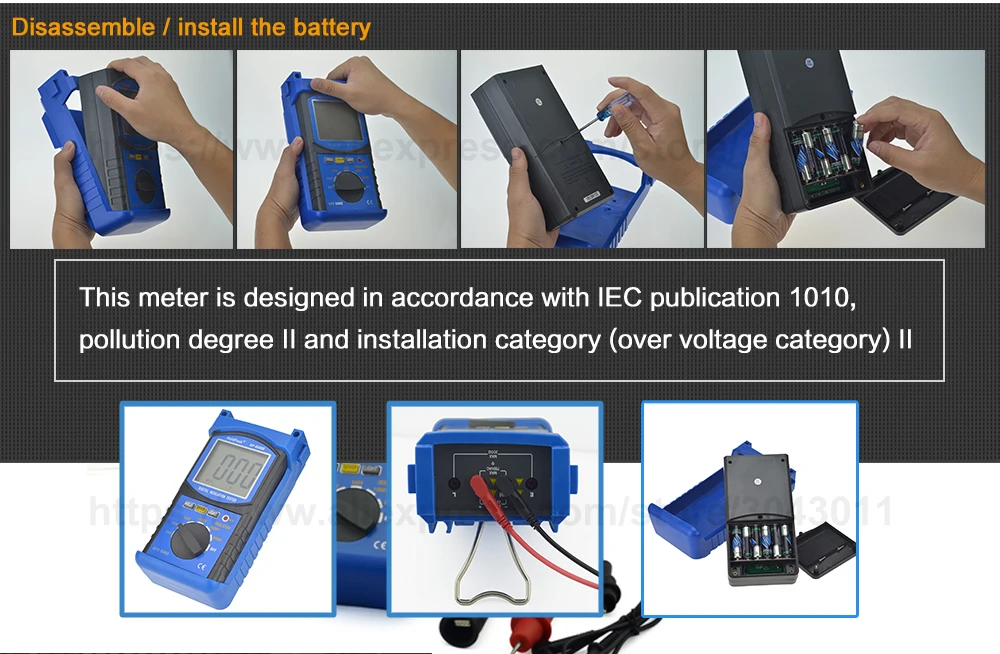

(2) This meter is designed in accordance with IEC publication 1010, pollution degree II and installation category (over voltage category) II.
(3) Should not use it before close the back lid cause of the danger of electroshock.
(4) Check the insulation layer of the test pin lead.
(5) Don’t rotate switch when testing.
(6) When seeing “Battery symbol” on the LCD, means the battery voltage is low. Please replace the battery or charge the battery by the battery charger to insure accurately testing.
Size of LCD: 68×55mm (Height of character is 35mm)

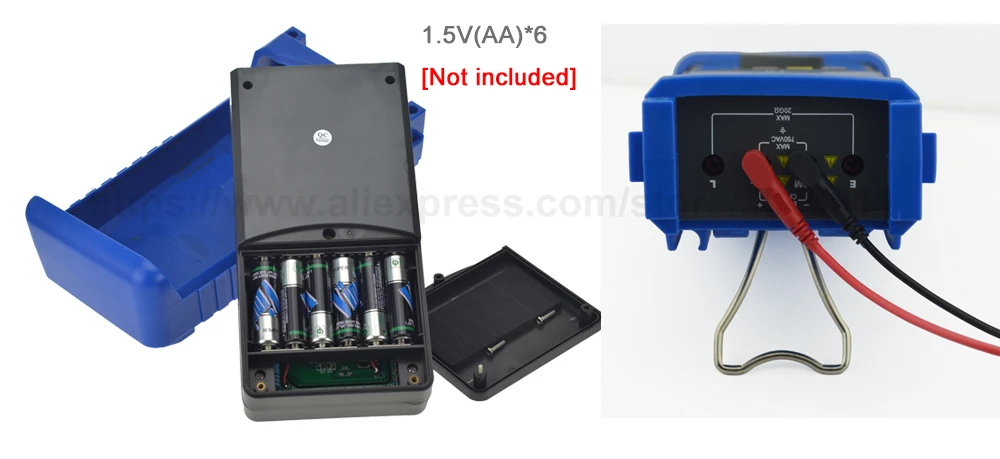

Power: six battery 5# which is 1.5V(Not included)

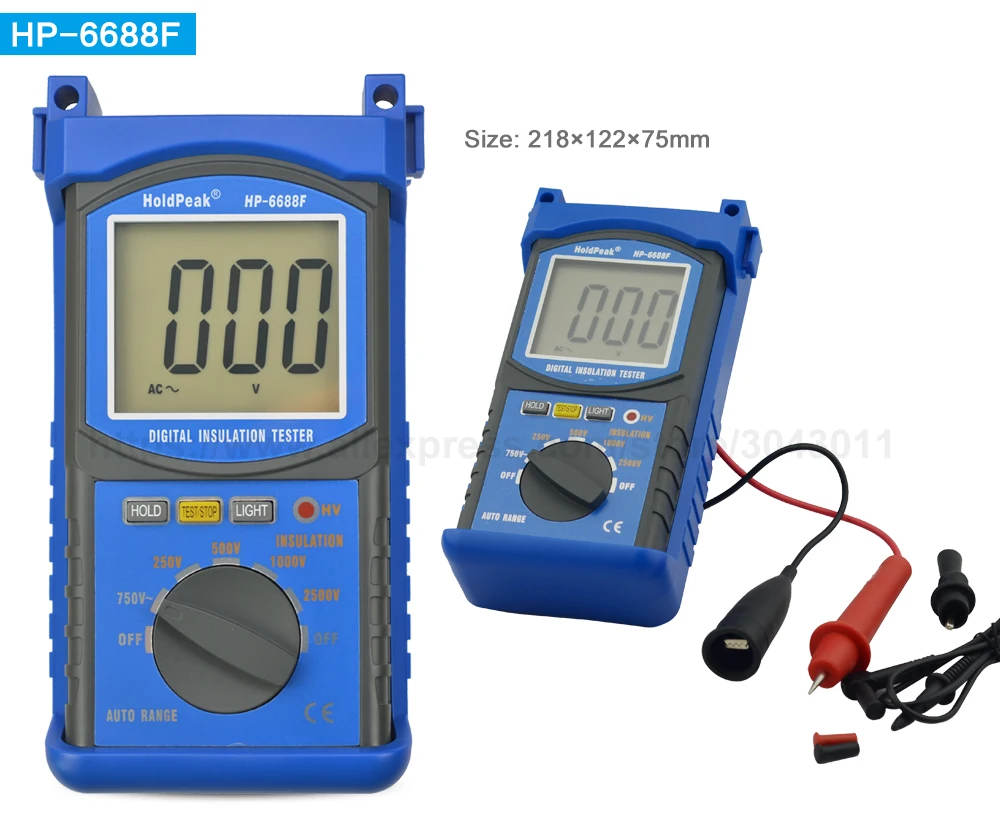

Size of shape: 218×122×75mm.
Weight: 900g (contain battery).
Environment:Working temperature: 0~40°C,
relative humidity <80%.
Storage temperature: -10～50°C,
relative humidity <85%.
A. The measuring lead of the insulation tester: 1 set
B. User’s manual: 1 piece
